Product Details

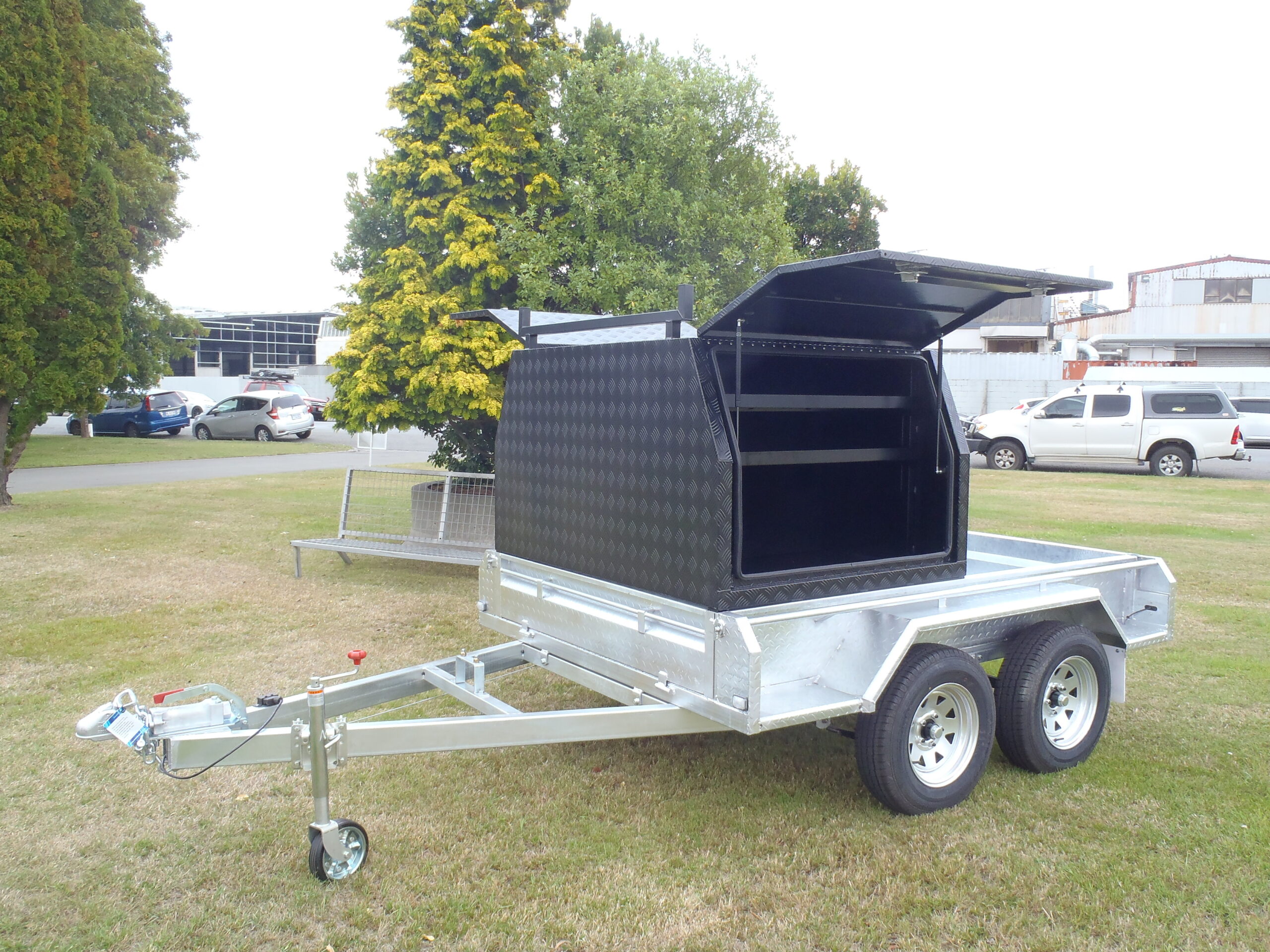

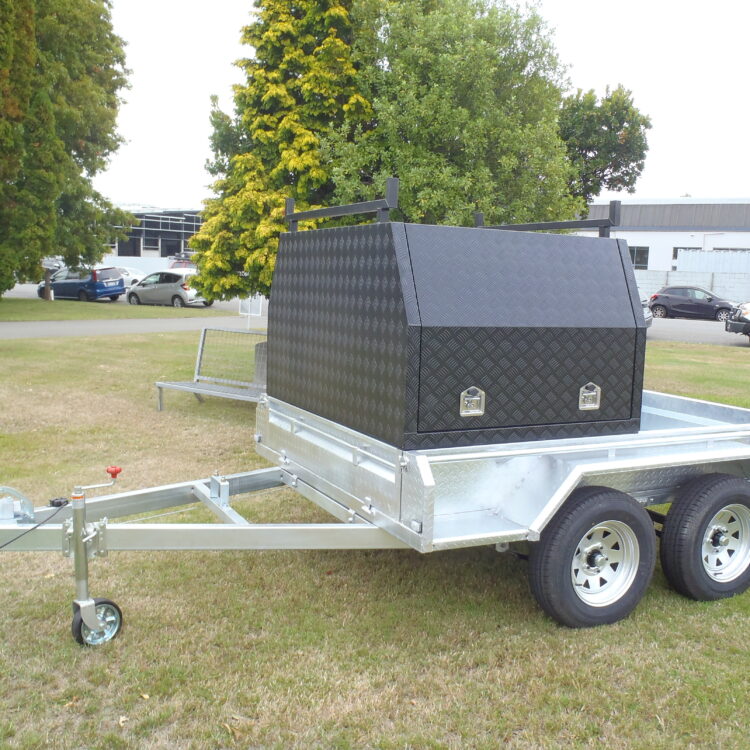

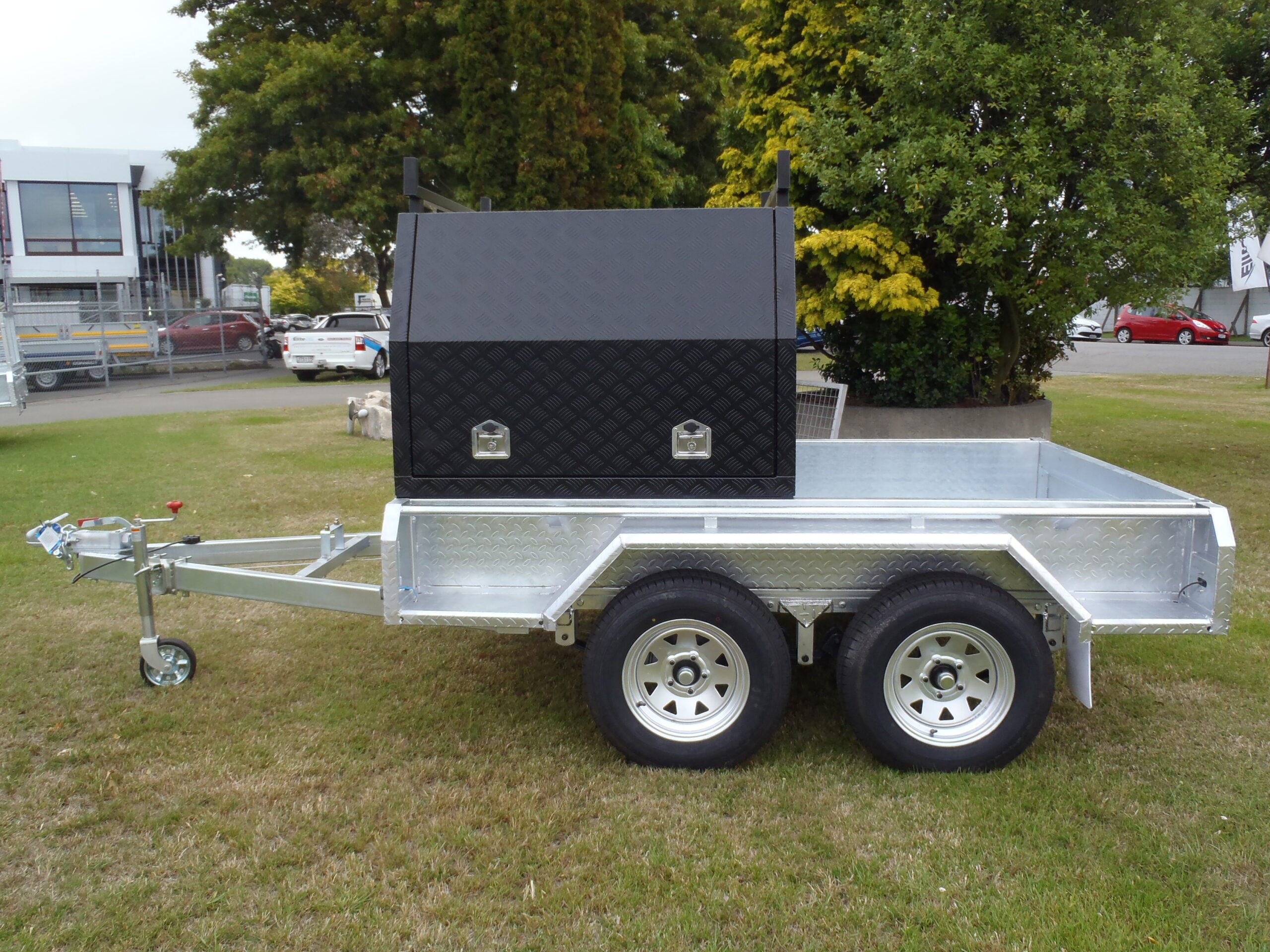

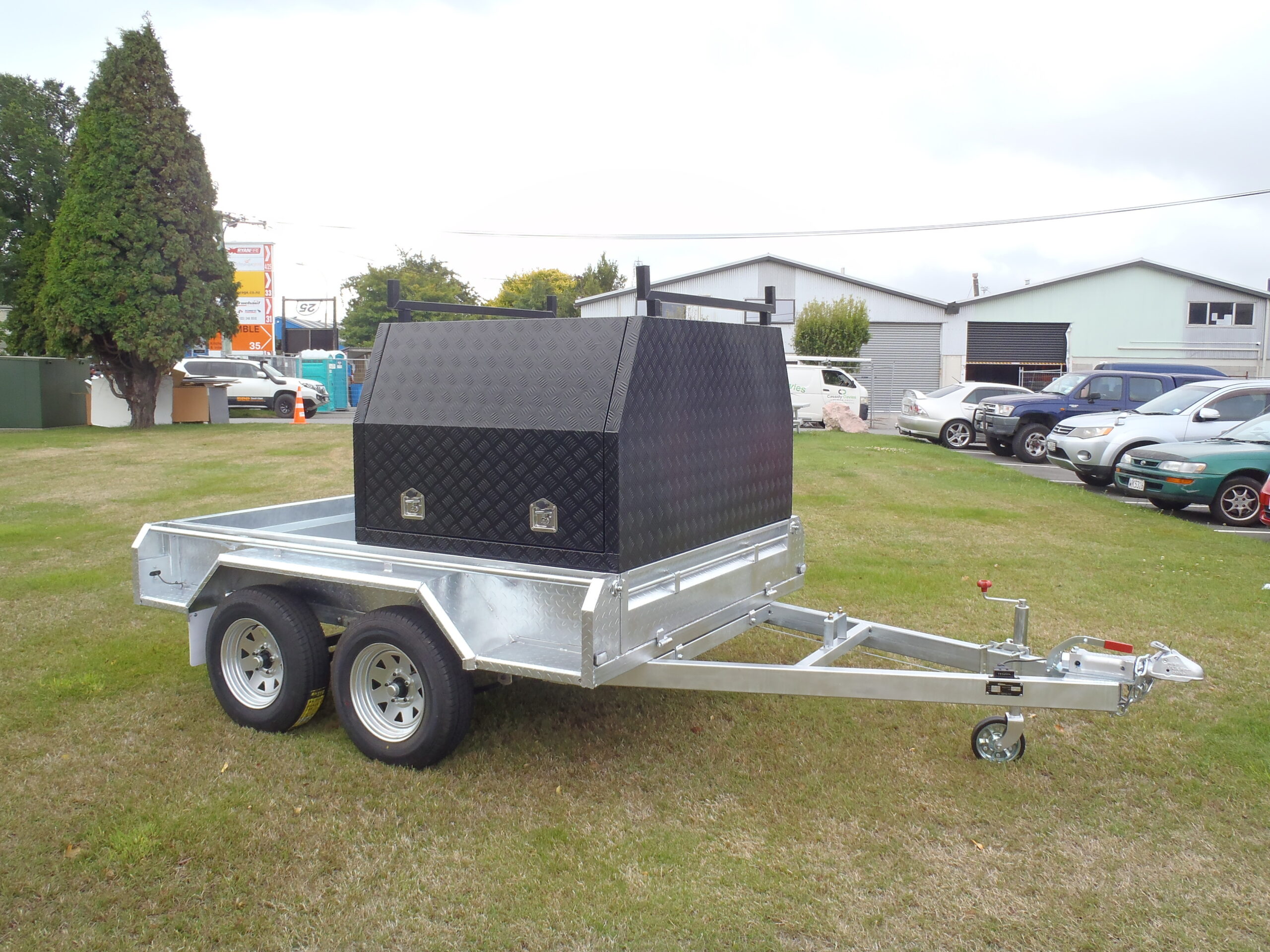

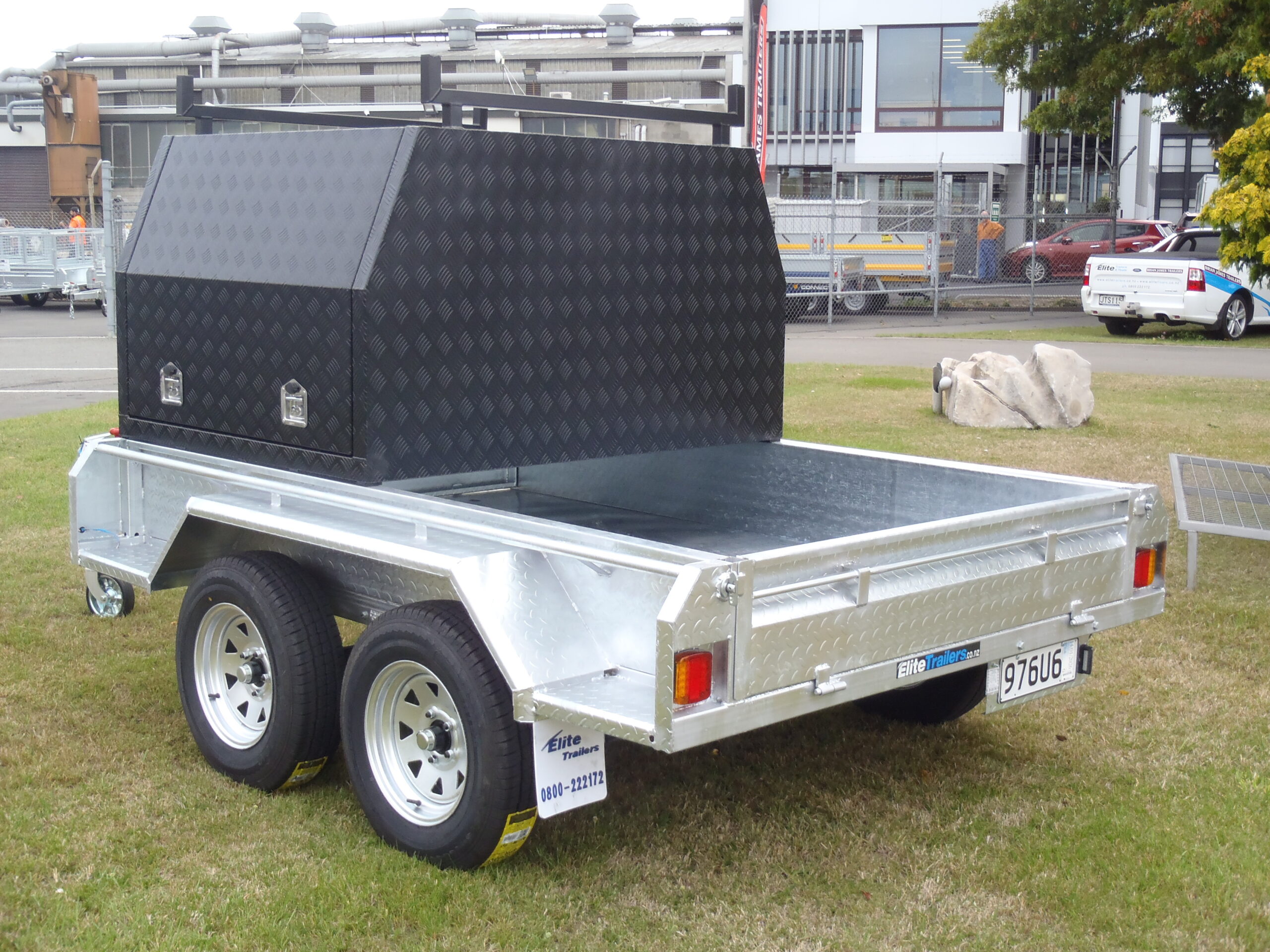

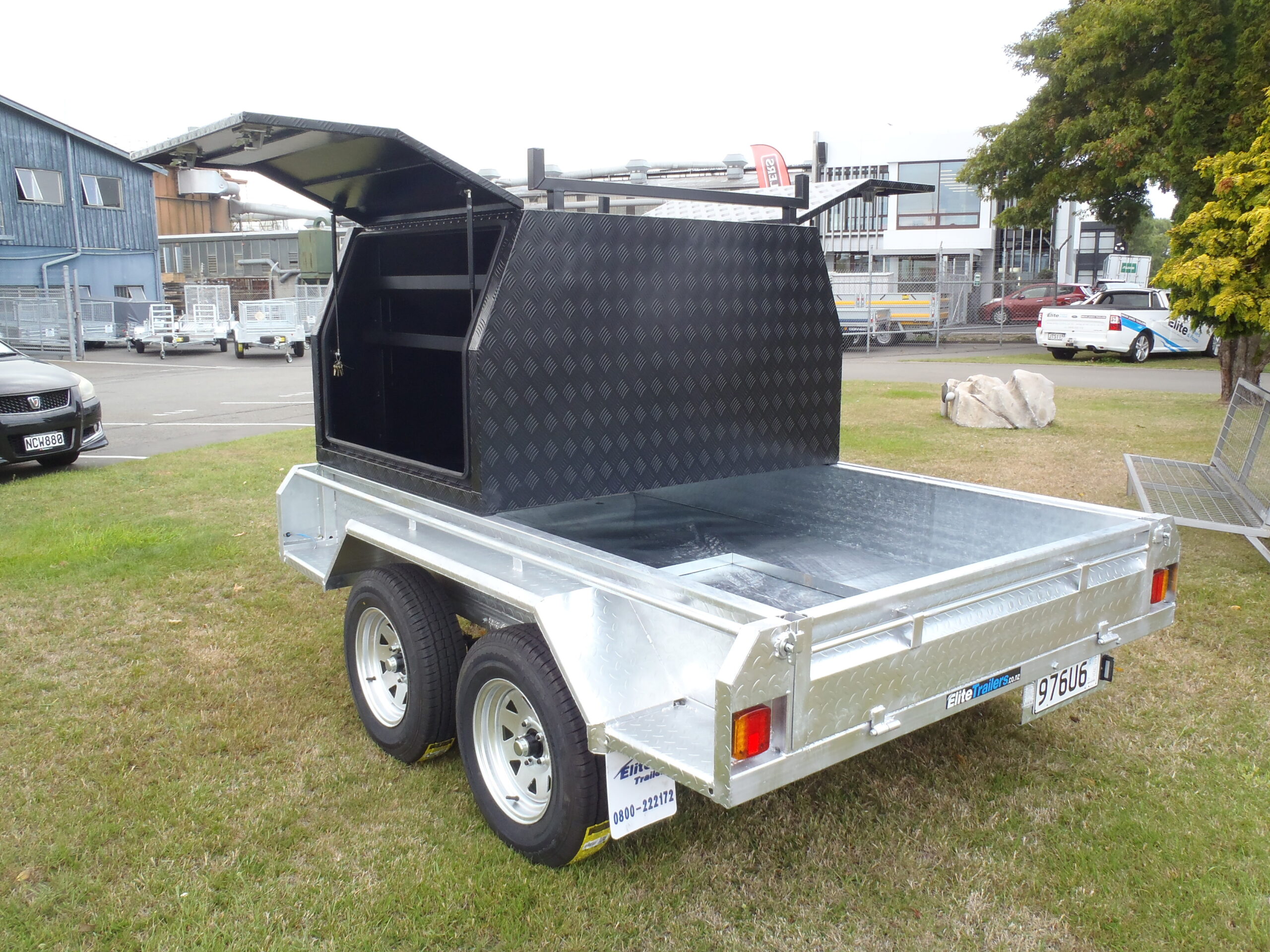

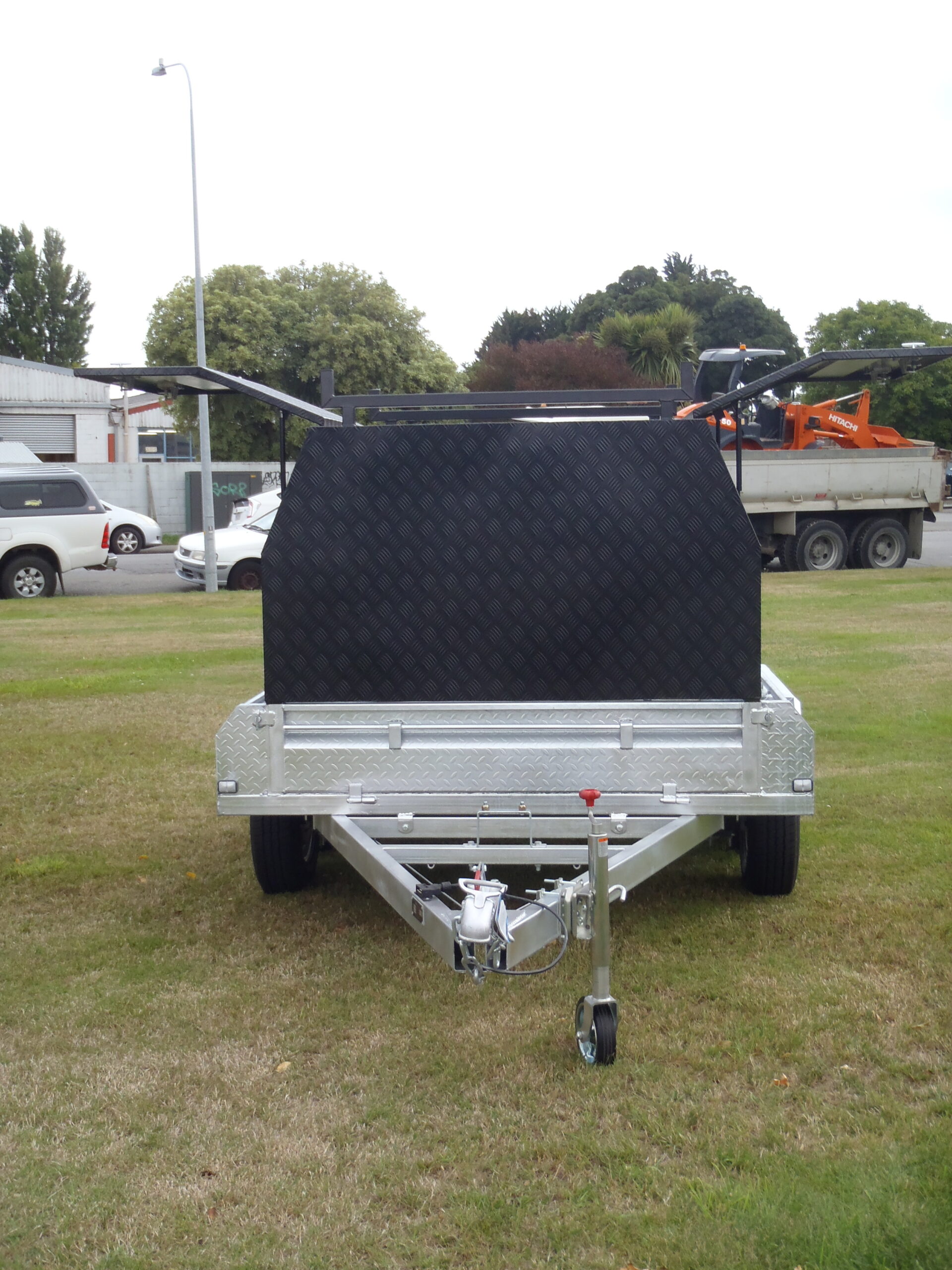

Want extra tool storage but still need some trailer space? If that’s your requirement here’s our popular 8×5 Alloy Top cut down to half size. At 4ft long there’s still 4ft of trailer deck, when fitted to an 8×5 Trailer, or 6ft if mounted on a 10×5 Trailer. Powder Coated inside and out in BLACK.

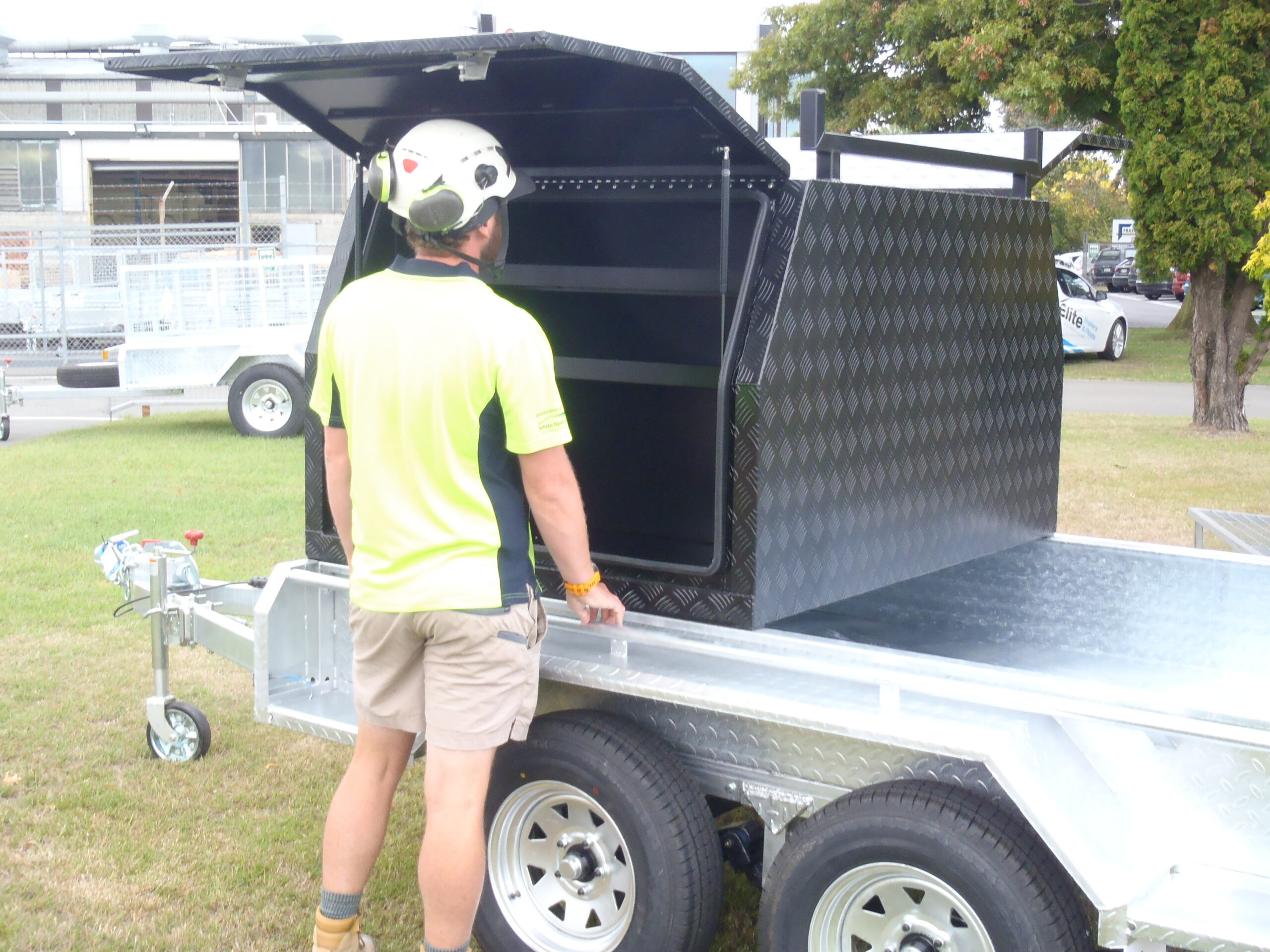

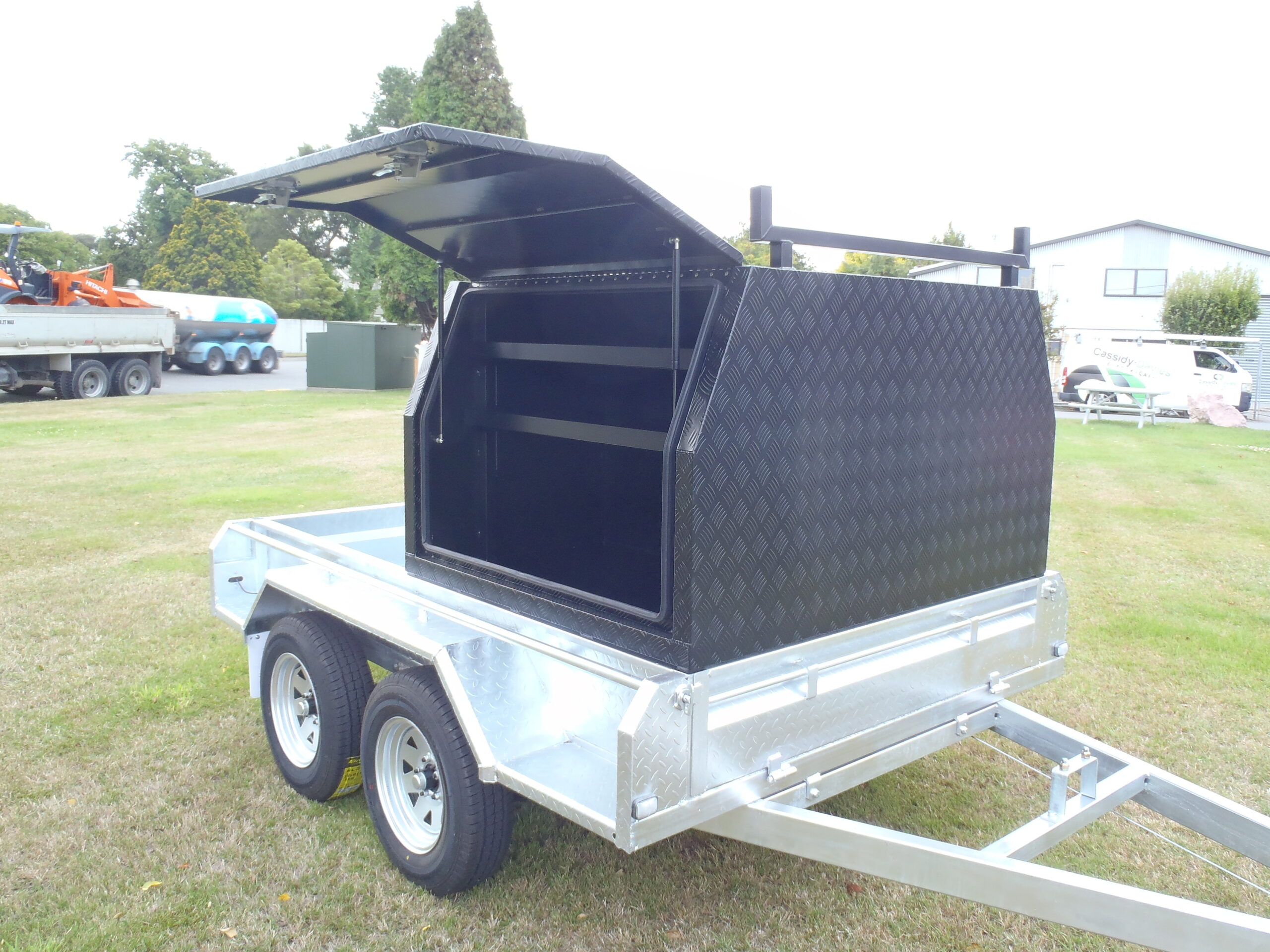

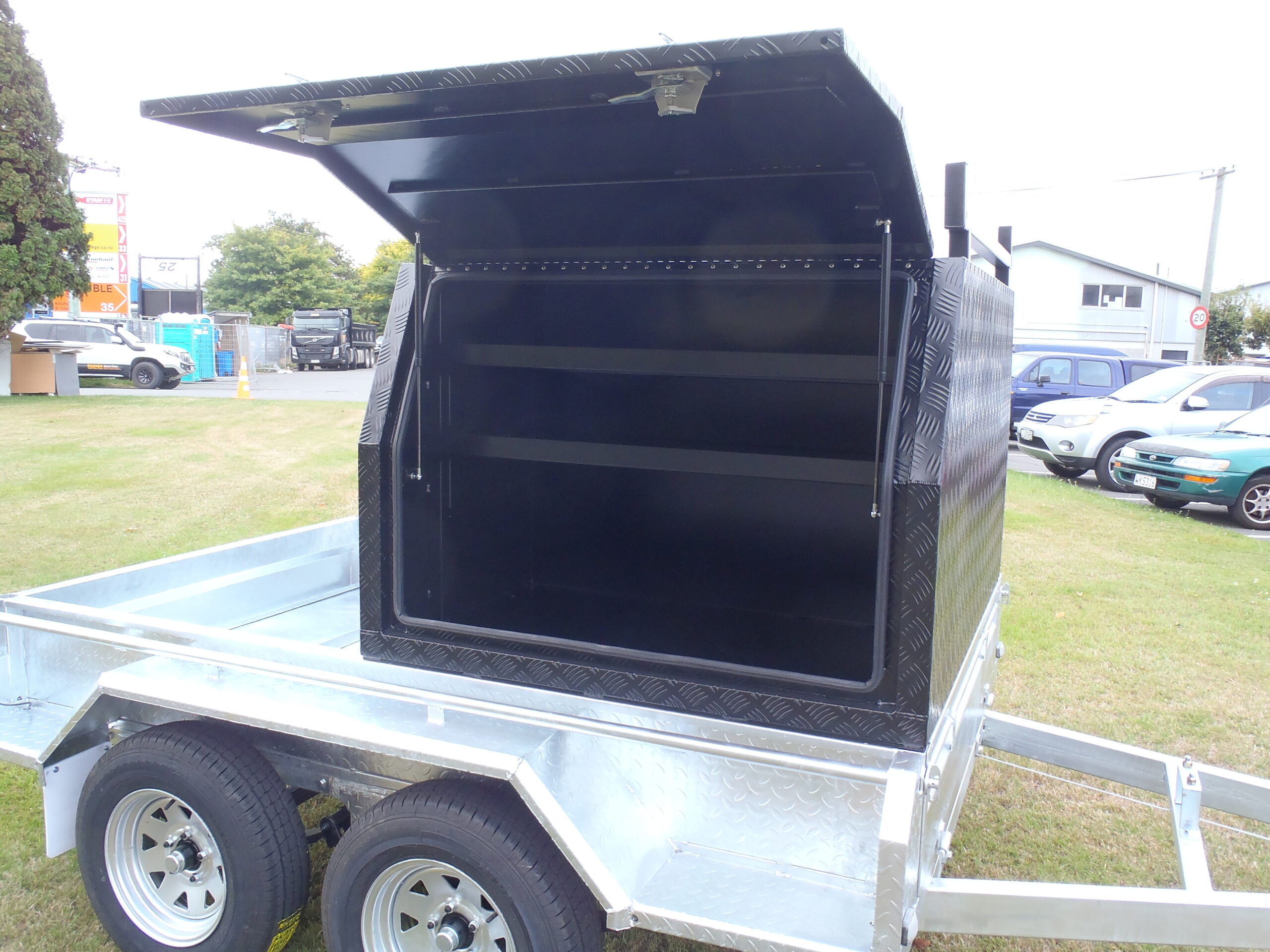

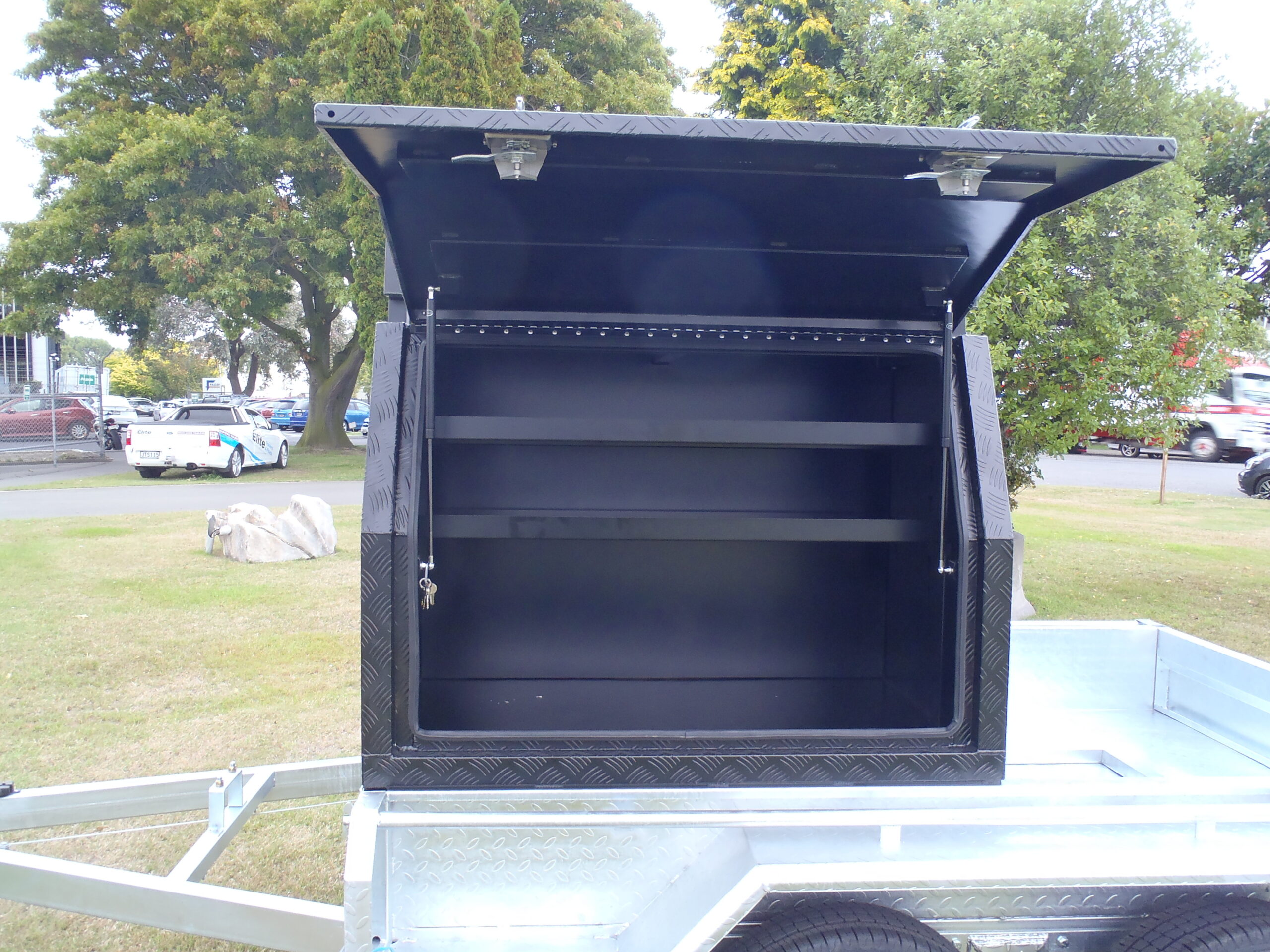

Central dividing wall separates left and right sides Two, height adjustable shelves, on each side. Gullwing side doors with locking latches Solid floor separates the upper tool area from lower trailer deck. Shelves 1170mm x 600 (WxD) Fitted with 2x H-bar Ladder Racks

KEY FEATURES THIRD GENERATION TRAILER

• Fully Welded All Checker Plate Body
• 2.5mm Checker Plate Guards and Sidestep
• 2.5mm one piece Steel Plate floor
• Recessed Taillights for protection

COMPARE OUR OTHER FEATURES:

• 8×5 Tandem Axle Trailer with Brakes
• Hot dipped galvanized Steel construction
• Inside Dimensions: 2440mm x 1515mm x 300mm
• RHS box section draw bar 100x50x3mm
• RHS box section Chassis frame – NOT angle steel
• 50mm Corner Pockets for easy fitting of cages & frames
• 2.5mm one piece Steel Plate floor
• 2.5mm Checker Plate Guards and Side Step
• Full length rope rails on sides, front & rear
• Fully opening front & rear tail doors
• Spare wheel bracket on draw bar
• 14” Galvanised Wheels with 185/70R14C 8ply Commercial Tyres
• 6 leaf Captive suspension for reduced road noise
• Rocker Suspension for load sharing
• 45mm Solid one-piece axles – Not tube or RHS
• NZ Supplied ALKO Wheel Bearings
• Over-ride Disc Brakes
• Folding jockey wheel

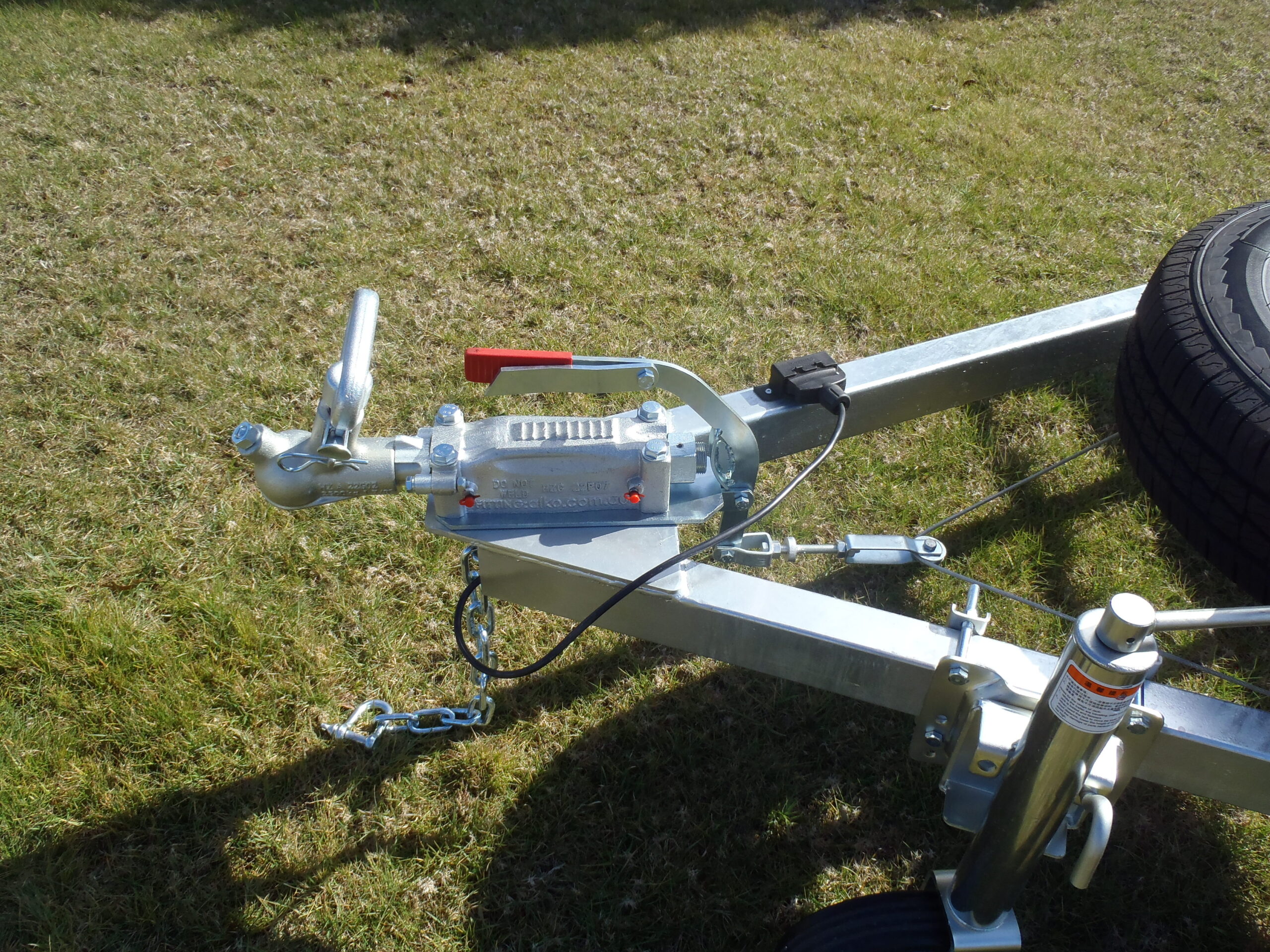

• NZ standard 1 7/8″ ALKO coupler
• 10-30v Multivolt LED Lights
• NZ standard 7 pin flat plug
• Mud Flaps
• NZTA compliant
• GVW: 2000KG
• TARE: 700KG
• NOTE: WOF & REG. Not included

ACCESSORIES:

• 14” Spare wheel: $180

WARRANTY:

• 12 Month Replacement of Parts
• 24 Month Structural Warranty
